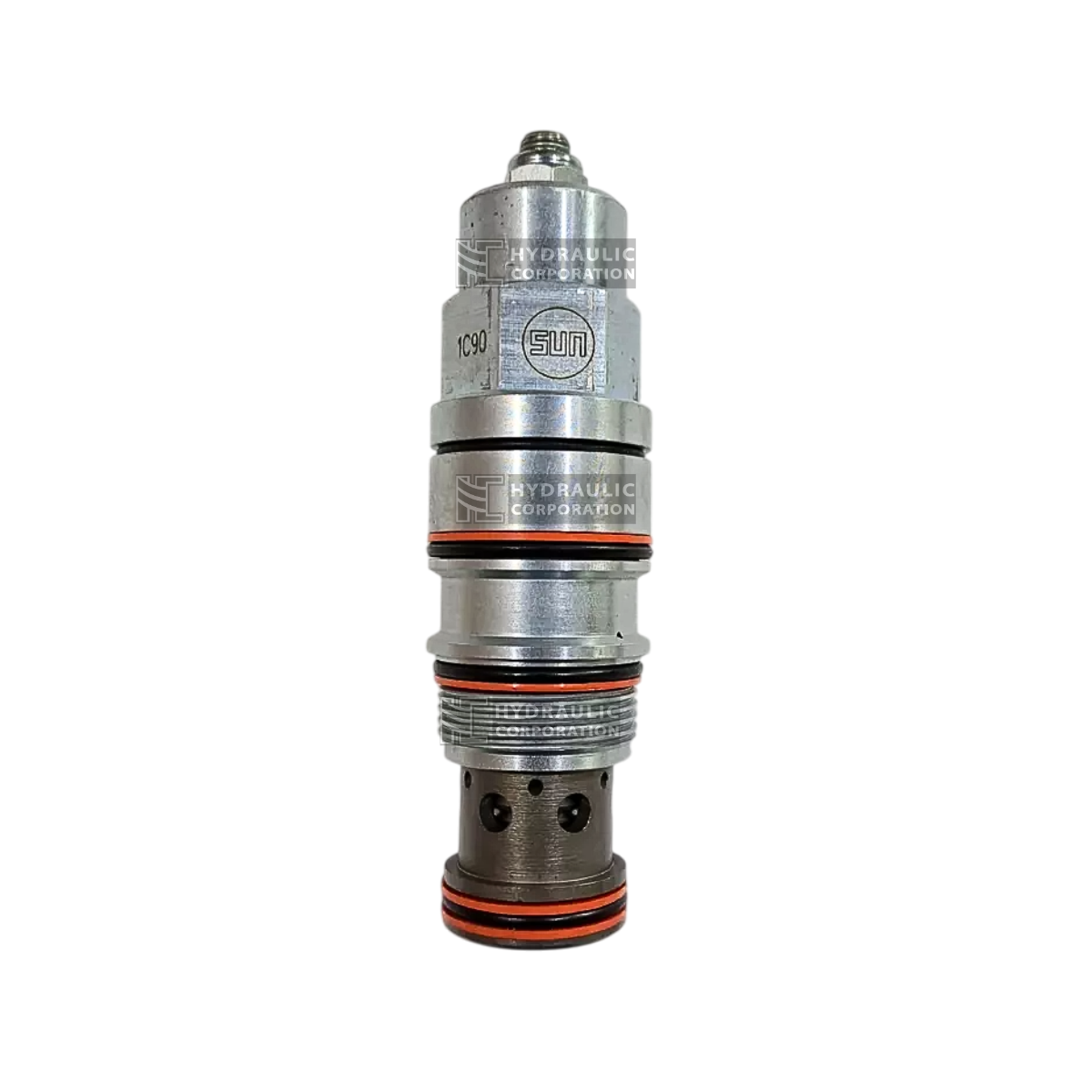

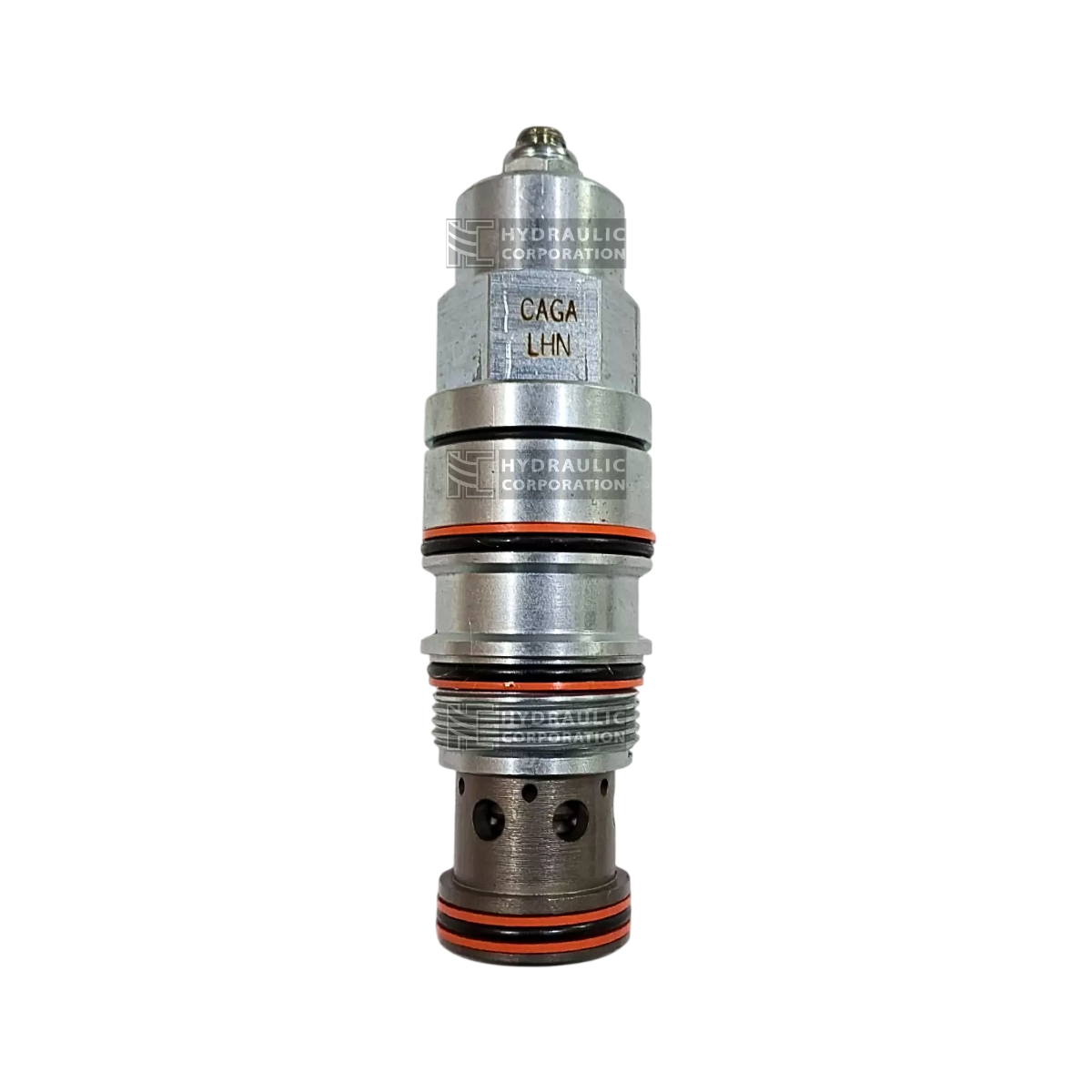

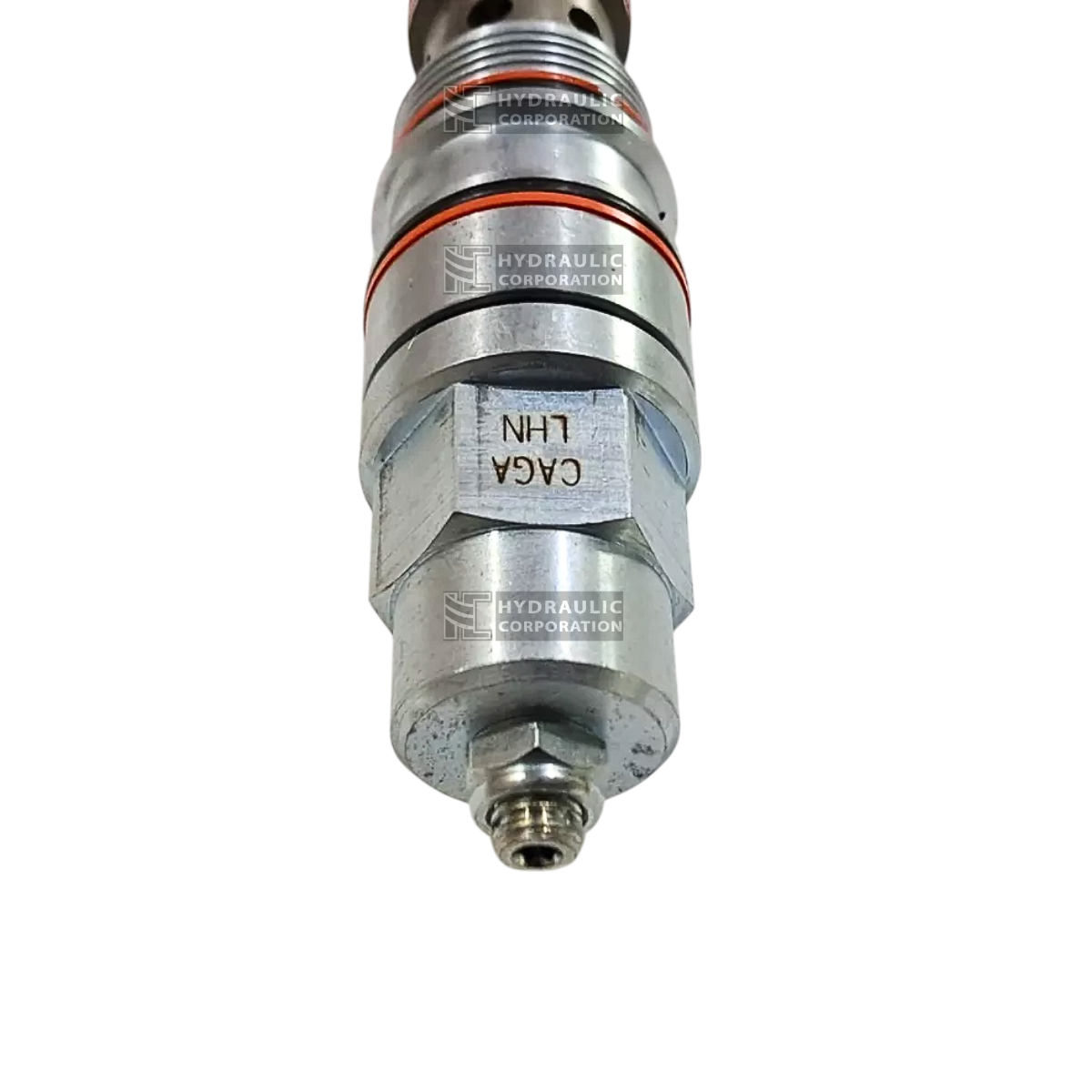

    CAGA-LHN

    Sun Hydraulics
    SKU: CAGA-LHN

    Válvula contrabalance 240l/min, 215-280 bar

    Inicia sesión para cotizar
    CaracterísticaDescripción
    CavityT-17A
    Series3
    Capacity60 gpm
    Pilot Ratio3:01
    Maximum Recommended Load Pressure at Maximum Setting3075 psi
    Maximum Setting4000 psi
    Factory Pressure Settings Established at2 in³/min.
    Maximum Valve Leakage at Reseat5 drops/min.
    Check Cracking Pressure25 psi
    Adjustment - No. of CCW Turns from Min. to Max. Setting5
    Operating CharacteristicStandard
    Reseat>85% of setting
    Valve Hex Size1 1/4 in.
    Valve Installation Torque150 - 160 lbf ft
    Adjustment Screw Internal Hex Size5/32 in.
    Locknut Hex Size9/16 in.
    Locknut Torque80 - 90 lbf in.
    Model Weight1.64 lb.
    Seal kit - CartridgeBuna: 990117007
    Seal kit - CartridgePolyurethane: 990117002
    Seal kit - CartridgeViton: 990117006
